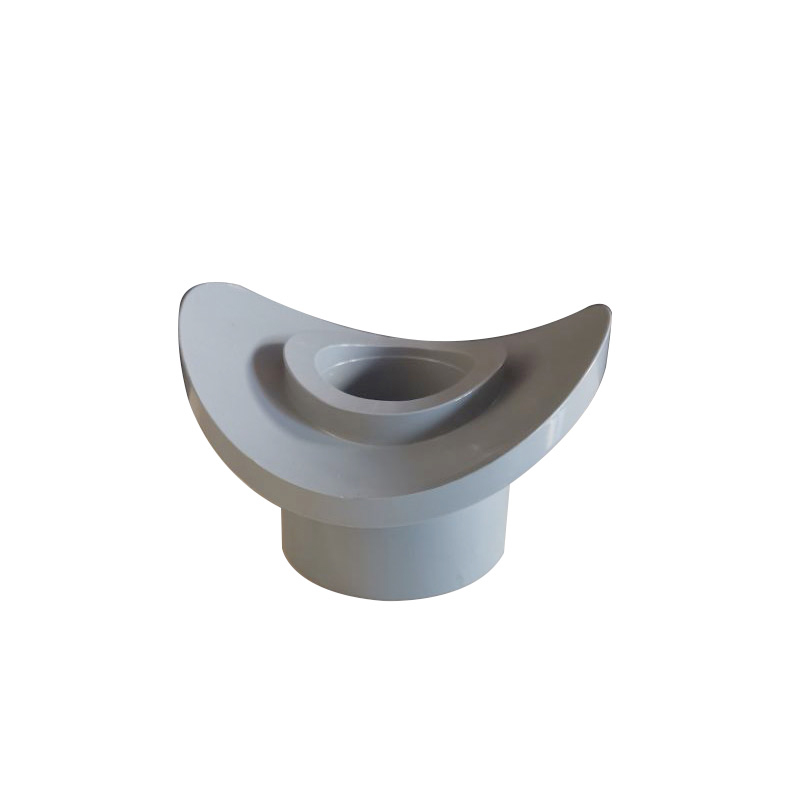

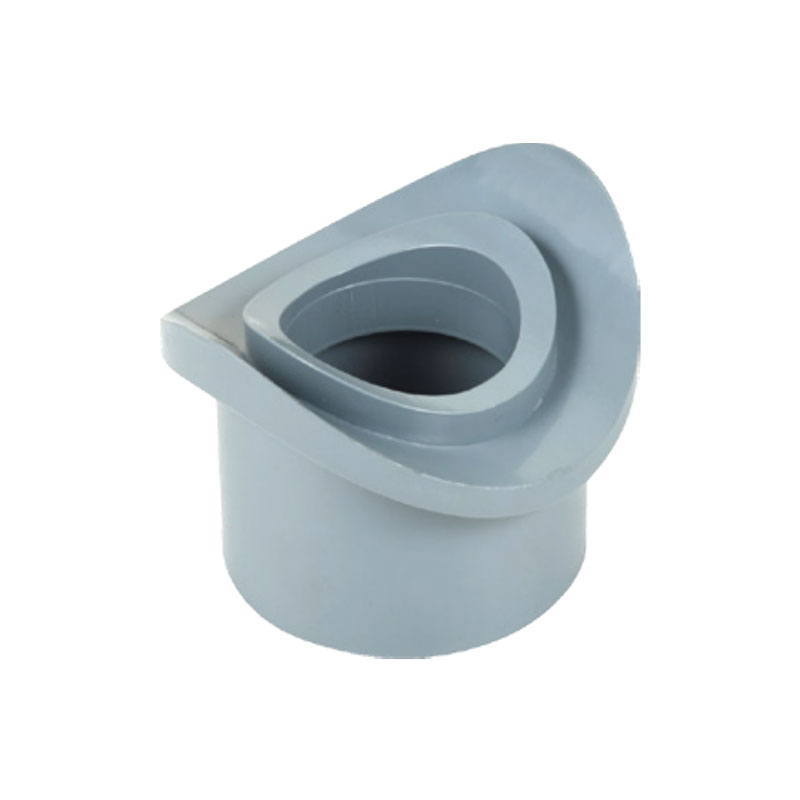

CPVC馬鞍接頭主要連接尺寸
?
數據正在更新。 請聯系我們的銷售以獲取更多詳細信息！
|

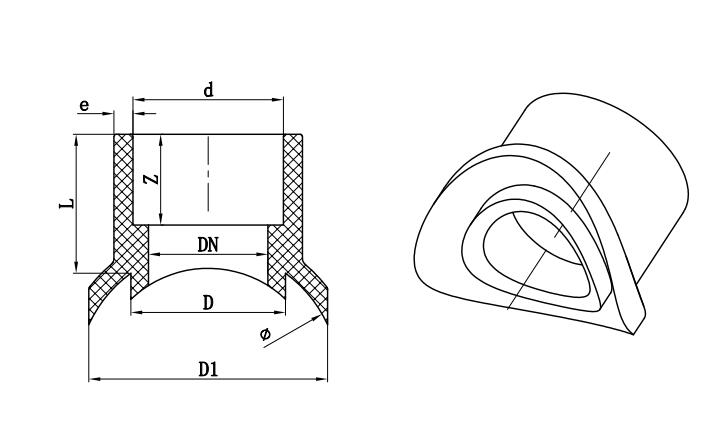

公稱通徑DN (mm) |
尺寸 | ||||||
| d | D1 | D | Z | e | ? | L | |
| DN100-DN50 | 63.3 | 100 | 65 | 38 | 8 | 110 | 48 |
| DN125-DN50 | 63.3 | 125 | 70 | 38 | 8 | 140 | 50 |
| DN150-DN50 | 63.3 | 130 | 70 | 38 | 8 | 160 | 51 |
| DN350-DN50 | 63.3 | 170 | 70 | 38 | 8 | 355 | 61 |
|
90°彎頭? |
束接/直通 |
三通 |
45°彎頭 |
法蘭 |
活套法蘭 |
管帽 |
盲板 |
四通 |
活接 |
外絲接頭 |
Y三通 |
|
|
DN15 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
||||
|
DN20 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
||||
|
DN25 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
||
|
DN32 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
||
|
DN40 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
||
|
DN50 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|
DN65 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
||
|
DN80 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
||
|
DN100 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
||
|
DN125 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|||
|
DN150 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|||
|
DN200 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|||
|
DN250 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|||||
|
DN300 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|||||
|
DN350 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|||||
|
DN400 |
◎ |
◎ |
○ |
○ |
◎ |
◎ |
||||||
|
DN450 |
◎ |
○ |
○ |
○ |
◎ |
◎ |
||||||
|
DN500 |
◎ |
○ |
○ |
○ |
◎ |
◎ |
||||||
|
DN600 |
○ |
○ |
○ |
○ |
○ |
○ |
||||||
|
DN700 |
○ |
○ |
○ |
○ |
○ |
○ |
|
異徑三通 (DN) |
40-15 |
50-25 |
65-32 |
80-32 |
100-25 |
125-40 |
200-150 |
350-150 |
|
40-20 |
50-32 |
65-40 |
80-40 |
100-32 |
125-80 |
250-65 |
350-200 |
|
|
40-25 |
50-40 |
65-50 |
80-50 |
100-40 |
125-100 |
250-100 |
||
|
40-32 |
65-15 |
80-15 |
80-65 |
100-50 |
150-80 |
250-150 |
||
|
50-15 |
65-20 |
80-20 |
100-15 |
100-65 |
150-100 |
300-100 |
||
|
50-20 |
65-25 |
80-25 |
100-20 |
100-80 |
200-100 |
300-200 |
||
|
異徑管/大小頭? (DN) |
20-15 |
40-20 |
50-40 |
80-15 |
100-15 |
100-80 |
150-125 |
300-150 |
|
25-15 |
40-25 |
65-15 |
80-20 |
100-20 |
125-50 |
200-100 |
300-200 |
|
|
25-20 |
40-32 |
65-20 |
80-25 |
100-25 |
125-80 |
200-125 |
300-250 |
|
|
32-15 |
50-15 |
65-25 |
80-32 |
100-32 |
125-100 |
200-150 |
350×150 |
|
|
32-20 |
50-20 |
65-32 |
80-40 |
100-40 |
150-50 |
250-100 |
350×250 |
|
|
32-25 |
50-25 |
65-40 |
80-50 |
100-50 |
150-80 |
250-150 |
350×300 |
|
|
40-15 |
50-32 |
65-50 |
80-65 |
100-65 |
150-100 |
250-200 |
500×200 |
|
|
縮接/補芯? (DN) |
20-15 |
32-15 |
50-25 |
80-65 |
125-100 |
200-150 |
300-250 |
|
|
25-15 |
32-25 |
50-40 |
100-50 |
150-100 |
250-150 |
|||
|
25-20 |
40-32 |
65-50 |
100-80 |
150-125 |
250-200 |
|||
|
馬鞍街頭(DN) |
100-50 |
125-50 |
150-50 |
350-50 |
依據工業管ISO標準，DN450 以上管路一般選用玻璃鋼復合的管件管件尺寸基于相應標準，管件具體尺寸請查詢寶蒂管道系統手冊或咨詢我司
玻璃鋼復合管標準：HG-3731
CPVC管件標準號：GB/T 18998.3-2003
UPVC管件標準號：GB/T 4219.2-2008
法蘭連接標準：HG 20592 PN10 法蘭
○：二次成型
◎：一次成型
